Products » Telescopic Belt Conveyor

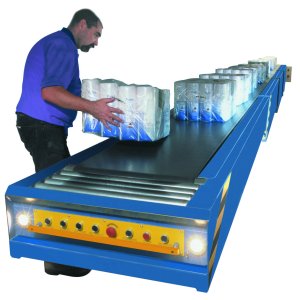

LongReach Telescopic Belt Conveyors, also known as cantilevered booms or extendable conveyors, will load/unload virtually any loose item quickly, safely and efficiently. By extending directly into the trailer without the need of support LongReach will significantly reduce load/unload times. The LongReach Telescopic Belt Conveyor is a modern and robust conveyor designed to provide superior service and reliability.

  • Available boom extensions 5.0 - 16.0 metres
  • 0 - 30 metres / minute line speed
  • All rolling components have lifetime sealed bearings

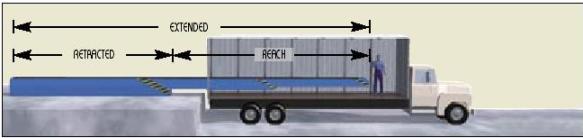

Standard Dimensions - 40' LongReach

Model Reach Retracted Extended Height
LR4160
LR4120
LR3150
LR3120
LR2120		 16.0m
12.0m
15.0m
12.0m
12.0m		 7.0m
5.5m
8.0m
7.0m
8.5m		 23.0m
17.5m
23.0m
19.0m
20.5m		 935mm
935mm
795mm
795mm
635mm

Standard Dimensions - 20' LongReach

Model Reach Retracted Extended Height
LR3100
LR380
LR360
LR290
LR260
LR260		 10.0m
8.0m
6.0m
9.0m
6.0m
5.0m		 5.9m
5.0m
4.0m
7.0m
5.0m
4.2m		 15.9m
13.0m
10.0m
16.0m
11.0m
9.2m		 795mm
745mm
695mm
635mm
585mm
585mm

Technical Specification

Belt Speed 30 metres / minute (other speeds on request)
Belt Power 1.5 - 3.0 kw (according to size and duty)
Telescoping Speed 18 metres / minute
Telescoping Power 0.37 - 0.75 kw
Conveyor Capacity 50kg/m U.D.L. at full extension
Belt Type 2 ply PVC low stretch anti-static
Belt Width 600mm (other widths are available on request)
Overall Width 1000mm nominal
Mains Voltage 415 volt 3 phase (other voltages available on request)
Control Voltage 24 volt AC/DC
Electrical Protection IP55

Features

  • Can be safely operated by just one person.
  • Front of boom is always at the loading / unloading face reducing physical effort, lifting, carrying and back strain.
  • 30 metres / minute belt speed provide rapid load / unload capability.
  • Two heavy duty halogen lights provide illumination directly into the loading area.
  • All rolling components have lifetime lubricated sealed bearings and crowned belt rollers ensuring accurate belt tracking.

Benefits

  • Reduces loading / unloading times.
  • Reduces risk of workplace injury to operators.
  • Reduces risk of damage to products.
  • Reduces shipping costs.
  • Increases safet, efficiency and productivity.

Options

An extensive range of Boom Conveyor options are available to meet your specific loading/unloading requirements.

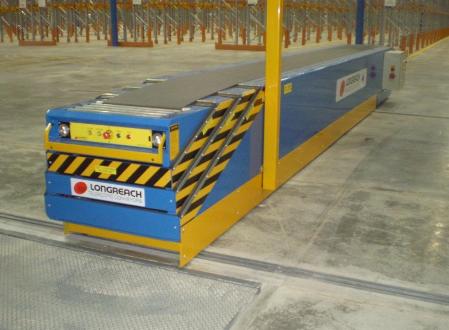

Traverse


Raised Belt Transfer

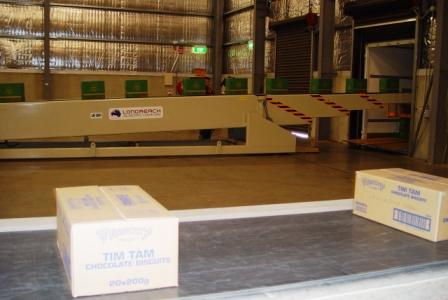

Hydraulic Tilt


High Level Mounting


Operator Platform

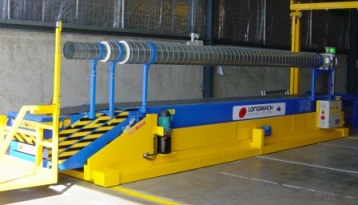

Telescopic Ventilation
