Best/Flex Roller

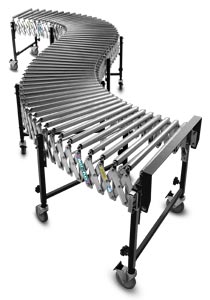

BestFlex Gravity Roller

Excellent for handling odd-shaped items, bags and low grade cartons.

  • 220kg capacity per linear metre (level)
  • 762 to 1080mm adjustable conveyor height
  • 450, 600 and 750mm conveyor widths
  • Available in any length to fit your applications

Technical Specification

Model Number Width Standard Lengths Compacted to Expanded Leg Sets Per Unit Roller Axle Centres (Extended) Approx. Shipping Weight
B/FR-18-12
B/FR-18-16
B/FR-18-20
B/FR-18-24		 450mm
450mm
450mm
450mm		 1.2m - 3.7m
1.6m - 4.9m
2.0m - 6.1m
2.4m - 7.3m		 4
5
6
7		 127mm
127mm
127mm
127mm		 102kg
132kg
163kg
193kg
B/FR-24-12
B/FR-24-16
B/FR-24-20
B/FR-24-24		 600mm
600mm
600mm
600mm		 1.2m - 3.7m
1.6m - 4.9m
2.0m - 6.1m
2.4m - 7.3m		 4
5
6
7		 127mm
127mm
127mm
127mm		 109kg
138kg
170kg
200kg
B/FR-30-12
B/FR-30-16
B/FR-30-20
B/FR-30-24		 750mm
750mm
750mm
750mm		 1.2m - 3.7m
1.6m - 4.9m
2.0m - 6.1m
2.4m - 7.3m		 4
5
6
7		 127mm
127mm
127mm
127mm		 116kg
145kg
177kg
206kg
Adjustable Height: Standard adjustable range is from 762mm to 1080mm. 150mm castor option adds 23mm to conveyor height to make adjustable range from 785mm to 1103mm.

Axle Centres: When expanded, the distance between axle centre is 127mm. Optional 76mm and 102mm axle centres are available.

Extended Lengths: Best/Flex Gravity Roller conveyors are available in any length. If your application requires a length that is not listed in the above chart, please call LongReach for assistance.


Features

  • Self Tracking - Cartons follow the twists and turns of the conveyor path without using engineered curves.
  • Adjustable Height - Adjustable locking knobs to raise or lower conveyor height.
  • Square Tubing Legs - BEST offers heavy duty square tubing legs for longer service life.
  • 38mm Side Plates - Aluminium alloy construction fteaures a ribbed design for added strength. Assembled with bolts and lock nuts.
  • Castors with brakes - 127mm x 38mm swivel castors roll easily. Castor brakes lock both wheels and swivel simultaneously while the conveyor is in use.

Performance Options

Package Stop.
Stops cartons at the end of the conveyor and folds down out of the way when not needed.

Side Rails.
Prevents cartons from skewing off the conveyor in accumulation applications.

Leg Connect Brackets.
Easily connects two or more conveyors to span greater distances.

Axle Centres.
Optional 76mm and 102mm axle centres are available for small package applications.

150mm x 50mm Swivel Castors.
For easier rolling over uneven surfaces. Adds 40mm to conveyor height.
