Products » Powered Flexible and Expandable Conveyor Belts

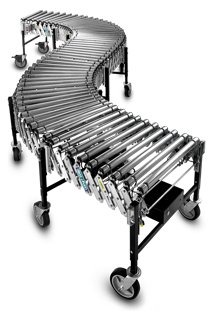

Power/Flex (1.9)

Click for Video
Click for Video

Ideally suited for loading and unloading, distribution centres, packaging, mobile assembly lines, shipping and receiving.

  • 150kg capacity per linear metre (level)
  • 724 to 946mm adjustable conveyor height
  • 450, 600 and 750mm conveyor widths
  • Available in any length to fit your applications

See also: Power/Flex (1.5)


Technical Specification

Model Number Width Standard Lengths Compacted to Expanded Leg Sets Per Unit Roller Axle Centres (Extended) Approx. Shipping Weight
P/F(1.9)-18-12
P/F(1.9)-18-24
P/F(1.9)-18-36
P/F(1.9)-18-48
450mm
450mm
450mm
450mm
1.42m - 3.7m
2.9m - 7.3m
4.4m - 11m
5.9m - 14.6m
5
8
11
14
127mm
127mm
127mm
127mm
145kg
288kg
431kg
574kg
P/F(1.9)-24-12
P/F(1.9)-24-24
P/F(1.9)-24-36
P/F(1.9)-24-48
600mm
600mm
600mm
600mm
1.42m - 3.7m
2.9m - 7.3m
4.4m - 11m
5.9m - 14.6m
5
8
11
14
127mm
127mm
127mm
127mm
170kg
338kg
508kg
676kg
P/F(1.9)-30-12
P/F(1.9)-30-24
P/F(1.9)-30-36
P/F(1.9)-30-48
750mm
750mm
750mm
750mm
1.42m - 3.7m
2.9m - 7.3m
4.4m - 11m
5.9m - 14.6m
5
8
11
14
127mm
127mm
127mm
127mm
195kg
390kg
583kg
778kg
Adjustable Height: Standard adjustable range is from 724mm to 946mm.

Axle Centres: When expanded, the distance between axle centre is 127mm. Optional 76mm and 102mm axle centres are available. Optional axle centres affect compacted conveyor length.

Extended Lengths: Power/Flex conveyors are available in any length. If your application requires a length that is not listed in the above chart, please contact LongReach for assistance.

Features

  • Continuous Duty Multiple Drive Motors - Line speed is adjustable from 0 to 36 metres per minute. Start/Stop cycle 300 times per hour. On/Off switches at both ends. Approximately 3 amps per 3.66 metres of conveyor. Durable drive motors features 0.09kw 180 volt DC with 220/240 volt AC converter.
  • Self Tracking - Cartons follow the twists and turns of the conveyor path without using engineered curves.
  • Adjustable Height - Adjustable locking bolts to raise or lower the conveyor bed height.
  • Square Tubing Legs - BEST offers heavy duty square tubing legs for longer service life.
  • 50mm rollers - Heavy duty 16 gauge precision bearing rollers on 12mm axles for greater durability.
  • 50mm Side Plates - Aluminium alloy construction features a ribbed design for added strength. Assembled with bolts and lock nuts.
  • Castors with brakes - 200mm x 50mm swivel castors roll easily. Castor brakes lock wheels in place while the conveyor is in use.

Performance Options

SuperOptics Electronics for Product Control.
Gives Power/Flex conveyors superior product flow control and improved ergonomics to cut labour costs and improve performance. Using reflective or under roller photo cells you can get the benefits of zero-pressure accumulation and an electronic package stop.


Zero-Pressure Accumulation.
Electronic controls enable cartons to move directly to the discharge end without stopping until they reach the last zone of accumulation.


Electronic Package Stop.
Automatically stops cartons at discharge end of conveyor. When carton is removed, conveyor starts again to bring next carton into position.


Indexing.
Under roller photo cells allow you to control the space between cartons for easier handling and bar code reading.


Heavy Duty Roller Connectors.
Easily connects two or more conveyors to span greater distances.


Axle Centres.
Optional 76mm and 102mm axle centres are available for small package applications.

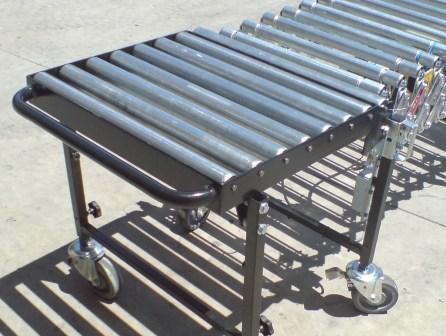

Heavy Duty Dump Table.
Bolted to conveyor, heavy duty 50mm rollers provide extra strength in punishing receiving applications.
